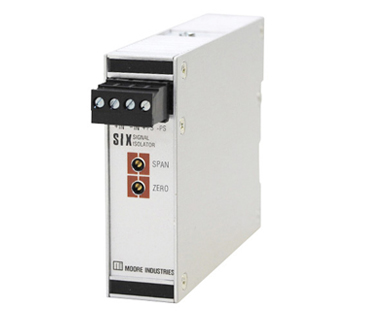

SIX Signal Isolator and Converter
Model: SIX/4-20mA/4-20mA/12-42DC/-RF [DIN]
The versatile SIX can be used as a signal isolator, converter, and repeater. Ideal for installation in the plant and control room, the 2-wire (loop-powered) SIX derives its power from the process loop, eliminating the need to install an additional power supply.
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | 4-20mA |
| Output | 4-20mA |
| Power | 12-42DC |
| Options | -RF |
| Input Description | 4-20mA |
| Output Description | 4-20mA |
| Power Description | 12-42DC, Output Loop Powered |
| Options Description | Enhanced RFI/EMI Immunity |
| Housing Description | Universal DIN-style housing, 32mm G-type and 35mm Top Hat |
| HART Signal Pass-through Capability | No |
| For use in Safety Instrumented Systems (SIS) | No |
| Number of Inputs | 1 |
| Input Type | 4-20mA |
| Number of Outputs | 1 |
| Device Power | 2-Wire, Loop Powered |
| Integral Display | No |
| Alarm/Relay Output | No |
| Configuration/Setup | Fixed Input/Output |
| Enhanced RFI/EMI Immunity | Yes |
| Housing/Enclosure | DIN Rail Enclosure |
| 2" Pipe Mount Bracket | No |
| Hazardous Area Certifications | CSA General Location, Non-Incendive/Div. 2, Zone 2 |
| RoHS Compliant | Yes |
