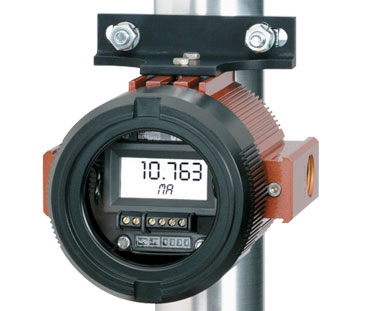

SDY PC Programmable Signal Isolator and Converter
Model: SDY/PRG/4-20mA/10-42DC [BH2MGP]
Moore Industries’ SDY PC-Programmable Signal Isolator/Converter with Display combines smart digital technology with a large display to deliver an accurate signal that is easily monitored in the field.
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | PRG |
| Output | 4-20mA |
| Power | 10-42DC |
| Input Description | Programmable, any range within -2.5 to 55mA or -.5 to 11V |
| Output Description | 4-20mA |
| Power Description | 10-42DC, Output loop powered |
| Housing Description | 2-Hub, explosion-proof enclosure with glass cover with 2" pipe mount bracket |
| HART Signal Pass-through Capability | No |
| For use in Safety Instrumented Systems (SIS) | No |
| Number of Inputs | 1 |
| Input Type | Configurable: Any range between 0-50mA and 0-10V |
| Number of Outputs | 1 |
| Device Power | 2-Wire, Loop Powered |
| Integral Display | Yes |
| Alarm/Relay Output | No |
| Configuration/Setup | PC Programmable, USB Cable |
| Enhanced RFI/EMI Immunity | No |
| Housing/Enclosure | Explosion Proof/Flameproof Nema 4X/IP66 Field Mount Enclosure |
| 2" Pipe Mount Bracket | Yes |
| Field Enclosure Conduit Connection | Metric |
| Hazardous Area Certifications | Explosion Proof, Flameproof, Non-Incendive/Div. 2, Zone 2 |
| RoHS Compliant | Yes |
