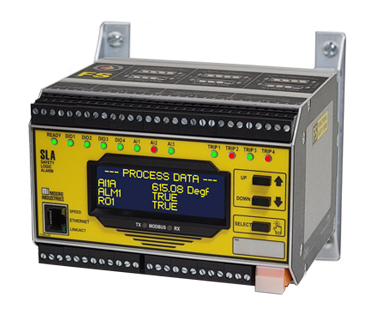

SLA Functional Safety Logic Solver and Alarm
Model: SLA/6PRG/4PRG/10-30DC/-3AO-MB485 [FLB]
The SIL 2/3 SLA Multifunctional Safety Logic Solver and Alarm performs as a single or multi-loop logic solver that incorporates enhanced math, voting and logic capability to act on potentially hazardous process conditions in Safety Instrumented Systems (SIS).
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | 6PRG |
| Output | 4PRG |
| Power | 10-30DC |
| Options | -3AO-MB485 |
| Input Description | Six Programmable Inputs for 0-25mA, 0-10V, RTD, T/C, Ohms, mV or Potentiometer and Four Discrete Inputs |
| Output Description | Four Relay Outputs and Four Discrete Outputs |
| Power Description | 4-Wire, 10-30VDC |
| Options Description | Three Programmable Analog Outputs, any range between 0-20mA and MODBUS RTU Output |
| Housing Description | Externally mounted flange, provides secure mount for resistance to vibration |
| HART Signal Pass-through Capability | Yes |
| For use in Safety Instrumented Systems (SIS) | Yes |
| Communication Protocol | MODBUS RTU, MODBUS/TCP, Web Server |
| Device Power | 4-Wire, 24VDC Line/Mains Powered |
| Input | Programmable: All Input Types |
| Number of Alarm/Relay Outputs | 1, 2, 3, 4, 8 |
| Analog Output | Yes |
| Integral Display | Yes |
| Intrinsically-Safe Input Connections | No |
| Configuration/Setup | PC Configurable, Ethernet |
| Housing/Enclosure | Flange Bracket for Seismic Applications |
| RoHS Compliant | Yes |
| Data Sheet |
|
| Drawings: DXF |
|
| Drawings: DWG |
|
| Manual |
|
| PACTware with MII Comm DTMs |
|
| Network Addressing Configuration (NAC) Client Software Required for Configuring the SLA's IP Address & Network Settings |
|
| MIIP Comms DTM |
|
| SLA Device DTM |
|
| Certifications |
|
| IEC 61508 Certificate |
|
