TRY PC-Programmable Temperature Transmitter | Moore Industries

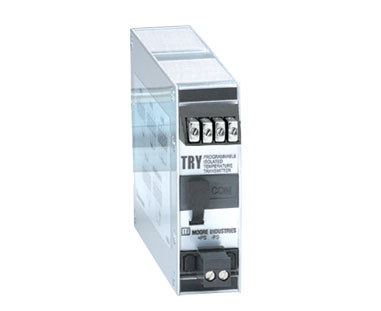

TRY PC-Programmable Temperature Transmitter

Model: TRY/PRG/4-20mA/10-42DC [DIN]

Request Quote
Quantity
Moore Industries’ PC-programmable TRY temperature transmitter combines smart digital technology with advanced analog operation to deliver superior reliability, accuracy, and ease of use. This 2-wire hybrid transmitter can be programmed in a minute or less to accept direct inputs from 23 RTD types, 9 thermocouple types, direct millivolt sources, and resistance and potentiometer devices. The TRY temperature transmitter is the ideal solution if you are looking to trim input readings directly from sensors to achieve maximum relative accuracy. Other features of the TRY include a fast measurement cycle and enhanced configuration software. Improve your process with the TRY temperature transmitter from Moore Industries.
  • PRODUCT DETAILS
  • DATA SHEET
  • MANUALS
  • DRAWINGS
  • SOFTWARE
  • CERTIFICATION
Input PRG
Output 4-20mA
Power 10-42DC
Input Description Programmable Input for RTD, T/C, Ohms, mV or Potentiometer
Output Description 4-20mA
Power Description 2-Wire, Output Loop Powered
Housing Description DIN rail mount
Output/Digital Communications 4-20mA Only
For use in Safety Instrumented Systems (SIS) No
Device Power 2-Wire, Loop Powered
Input Configurable: RTD, T/C, mV, Ohms, Potentiometer
Integral Display No
Alarm/Relay Output No
Intrinsically-Safe Input Connections No
Configuration/Setup PC Configurable, USB Cable
Enhanced RFI/EMI Immunity No
Isolation Fully Isolated
Housing/Enclosure DIN Rail Enclosure
2" Pipe Mount Bracket No
RoHS Compliant Yes
Data Sheet
Drawings: DXF
Drawings: DWG
Manual
TRY PC Configuration Software
Certifications
