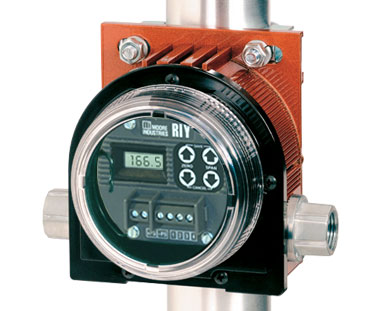

- RIY/PRG/4-20mA/12-30DC [D2LCP]
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | PRG |
| Output | 4-20mA |
| Power | 12-30DC |
| Input Description | Programmable Input for any RTD or Ohms input |
| Output Description | 4-20MA |
| Power Description | 2-Wire, Output Loop Powered |
| Housing Description | 2-Hub, low base, clear cover, NEMA 4X (IP66) enclosure |
| Output/Digital Communications | 4-20mA Only |
| For use in Safety Instrumented Systems (SIS) | No |
| Device Power | 2-Wire, Loop Powered |
| Input | RTD and Ohms only |
| Integral Display | Yes |
| Alarm/Relay Output | No |
| Intrinsically-Safe Input Connections | No |
| Configuration/Setup | Push Button Configurable |
| Enhanced RFI/EMI Immunity | No |
| Isolation | Fully Isolated |
| Housing/Enclosure | Nema 4X/IP66 Field Mount Enclosure |
| 2" Pipe Mount Bracket | Yes |
| Field Enclosure Conduit Connection | Standard (NPT) |
| Hazardous Area Certifications | Non-Incendive/Div. 2, Zone 2 |
| RoHS Compliant | Yes |
