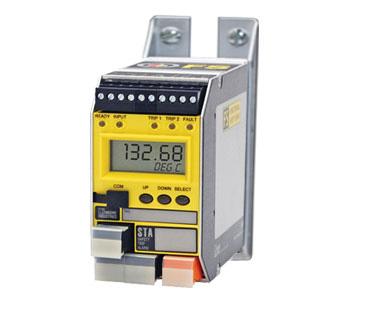

STA Functional Safety Limit Alarm Trip
Model: STA/HLPRG/3PRG/U/-AO [FLB]
The SIL 2/3 STA Safety Trip Alarm performs as a logic solver and acts on potentially hazardous process conditions by providing emergency shutdown or early warning indication in Safety Instrumented Systems (SIS).
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | HLPRG |
| Output | 3PRG |
| Power | U |
| Options | -AO |
| Input Description | Programmable, any range within 0-50mA or 0-10V |
| Output Description | Two Alarm Outputs, One Fault Relay |
| Power Description | Universal Power, 21.6-375Vdc or 90-260Vac |
| Options Description | Programmable Analog Output, any range between 0-20mA and 0-10V |
| Housing Description | Externally mounted flange, provides secure mount for resistance to vibration |
| Measurement Function for SIF/Loop | Logic Solver/Alarm Trip |
| Number of Analog Outputs | 1 |
| Device Power | Universal: 4-Wire 24DC/117VAC/230VAC Line/Mains Powered |
| Integral Display | Yes |
| Housing/Enclosure | Flange Bracket for Seismic Applications |
| 2" Pipe Mount Bracket | No |
| Hazardous Area Certifications | Non-Incendive/Div. 2, Zone 2 |
| RoHS Compliant | Yes |
