- STZ/PRG/4-20mA/12-42DC/-AIS [DIN]

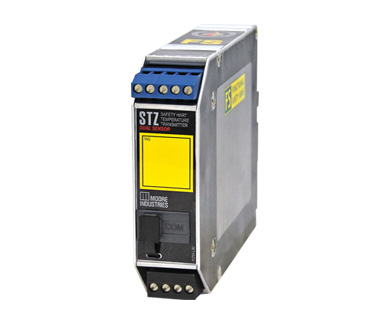

STZ Functional Safety Associated IS HART Temperature Transmitter
Model: STZ/PRG/4-20mA/12-42DC/-AIS [DIN]
The SIL 2/3 capable STZ Functional Safety Dual Input Smart HART® Temperature Transmitters are designed for your SIS (Safety Instrumented System) and configure quickly and easily to accept a single or dual input from a wide array of sensors and analog devices located in hazardous and nonhazardous areas.
- PRODUCT DETAILS
- DATA SHEET
- MANUALS
- DRAWINGS
- SOFTWARE
- CERTIFICATION
| Input | PRG |
| Output | 4-20mA |
| Power | 12-42DC |
| Options | -AIS |
| Input Description | Associated IS Dual Input Programmable for RTD, T/C, Ohms, mV or Potentiometer |
| Output Description | 4-20mA |
| Power Description | 2-Wire, Output Loop Powered |
| Options Description | Associated IS Input Connections |
| Housing Description | DIN rail mount |
| Measurement Function for SIF/Loop | Temperature Measurement |
| Number of Analog Outputs | 1 |
| Device Power | 2-Wire, Loop Powered |
| Integral Display | No |
| Housing/Enclosure | DIN Rail Enclosure |
| 2" Pipe Mount Bracket | No |
| Hazardous Area Certifications | Associated Intrinsically-Safe, Non-Incendive/Div. 2, Zone 2 |
| RoHS Compliant | Yes |
| Data Sheet |
|
| Drawings: DXF |
|
| Drawings: DWG |
|
| Manual |
|
| PACTware Cyber Security Notice (for versions 5.0.5.31 and lower) |
|
| PACTware with MII Comm DTMs |
|
| STZ Device DTM |
|
| MISP Comms DTM |
|
| STZ 375 475 Handheld |
|
| STZ HART DD |
|
| Certifications |
|
| IEC 61508 Certificate |
|
