545 1/4 DIN Dual Loop Process Controller | Moore Industries

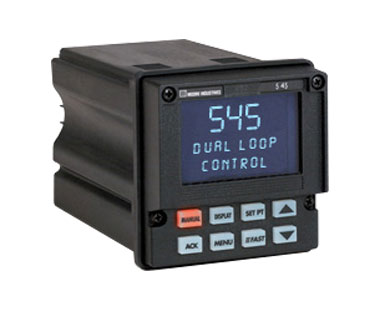

545 1/4 DIN Dual Loop Process Controller

Model: 545-22220B0000

Request Quote
Quantity
The UL Approved 545 dual-loop process controller is designed to ensure the integrity of your process with maximum reliability for single loop, dual loop, casCADe, ratio or feed forward control.
  • PRODUCT DETAILS
  • DATA SHEET
  • MANUALS
  • DRAWINGS
  • SOFTWARE
  • CERTIFICATION
Input Two, Universal
Output Four 4-20mA
Power 90-250Vac
Options Remote setpoint
Input Description Programmable dual input, RTD, T/C, mV, Current or Voltage
Output Description Four analog outputs
Power Description Universal AC, 90 to 250Vac
Options Description Remote setpoint
Housing Description 1/4 DIN Panel Mount
Primary Function of Controller Dual Loop P, PI, or PID Control, Cascade Control, Ratio Control, Feed Forward Control
Output Slot 1 - Control Output Type Analog (Milliamp)
Output Slot 2 - Control Alarm Retransmission or Loop Power Analog (Milliamp)
Output Slot 3 - Alarm Retransmission or Loop Power Analog (Milliamp)
Output Slot 4 - Alarm Retransmission or Loop Power Analog (Milliamp)
Options Remote Setpoint
RoHS Compliant Yes
Data Sheet
Drawings: DXF
Drawings: DWG
Manual
500 Parameter Loader Configuration Software
Certifications
